C U Channel 4m/Min Light Steel Keel Roll Forming Machine

BOTOU SHITONG COLD ROLL FORMING MACHINERY MANUFACTURING CO.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

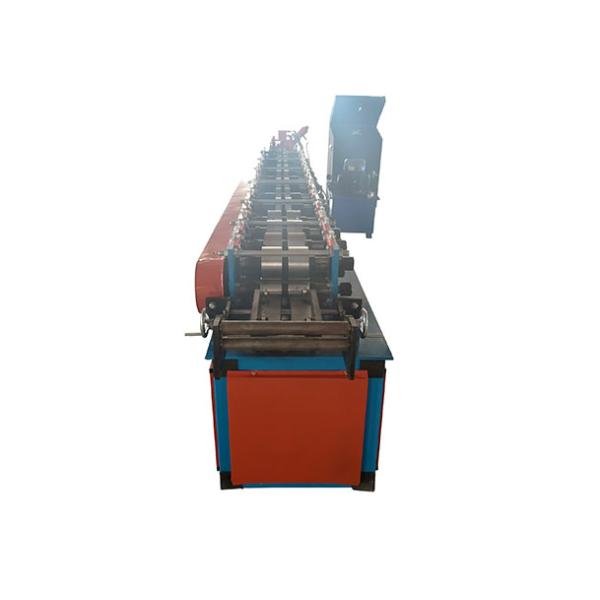

C U Channel 4m/Min Light Steel Keel Roll Forming Machine

  • 1
  • 2

Brand Name : SHITONG

Model Number : C89

Certification : ISO,CE

Place of Origin : Cangzhou, China

MOQ : 1 set

Price : Contact us get the best price

Payment Terms : L/C,T/T

Supply Ability : 20sets/month

Delivery Time : 40-60 days

Packaging Details : Loading container

Machine Size : 5.6*1.4*1.5m

Thickness of matrial : 0.5-1mm

Forming steps : 12 steps

Control system : PLC automatically control

name : steel frame roll forming machine

Punching : hydraulic punching system

Material of shafts : High grade 45# forged steel

Material of blade : Cr12 Heat Treatment

Weight(About) : 1.6tons

Speed : 4-6 m/min

Contact Now

Keel roll forming machine c u channel for ceiling, L angle stud profile machine

1. Galvanized steel C shape steel keel roll forming machine with hydraulic punching system

--- Serval group continuous forming rollers let the galvainized steel easy forming.

--- During forming, a hydraulic punch mold can puch holes on the frame.

--- A PLC control program can control the forming and punching coordinately.

--- The finally products use for steel construction frames.

2. Galvanized steel C shape steel keel roll forming machine with hydraulic punching system parameters

parameters
Production Capacity 8-12 m/min
Power(W) 4+4KW
Voltage 380V 50Hz 3phases
Dimension(L*W*H) 5600*800*1500mm
Weight 2 T
Suitable material Colored Steel plate, galvanized board, Aluminum plate
Width of the raw material 150-300 mm
Rows of rollers 12 rows
Material of roller High grade 45# steel(plated chrome on surface)
Thickness of raw material 0.3-0.8 mm
Certification ISO
Tile Type Tile Cutting Machine

Machine Components
No. Name QTY
1 Manual uncoiler 1 set
2 Feeding and leveling device 1 set
3 Roll forming system 1 set
4 Hydraulic punching and cutting 1 set
5 Product support frame 1 set
6 PLC Control System 1 set

3. roll forming machine company profiles

Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is a professional manufacturer and exporter that are concerned with the design, development and manufactur of cold roll forming machines. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.


The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.


Options & Upgrades helps you:
1 - Boost product quality
2 - Increase efficiency
3 - Reduce Total Cost of Ownership
4 - Future-proof your productivity

FAQ

1. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.

2. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.

3. What can you do if the machine broken?
Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.

4. Can you be responsible for transport?
Yes,please tell me the destination port or address.we have rich experience in transport.

5. You are trade company or factory?
We are trade company but we also have own factories. Building trade company is just for exporting various types of cold roll forming machines.

6. Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend time and money on developing How to make machines much more automatic, accurate and high quality. We can make sure thatour machine could use more than 20 years without any problem. We can provide 2 years free qualityassurance.

7. How long the machine could be made?
Normally speaking, welded pipe making machine could be made without 45 working days. If you need machines in a hurry, we can make it for you less than a month.

3. How to visit your company?
A. Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
B. Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi (4.5 hours), then we can pick up you.
4. What can you do if the machine broken?
Our machine's warranty period is 24 months, if the broken parts can't repair, we can send the new parts replace the broken parts freelly, but you need pay the express cost yourself. If after warranty period, we can through negotiationfor to solve the problems, and we supply the technical support for the whole life of the equipment.
5. Can you be responsible for transport?
Yes, please tell me the destination port or address.we have rich experience in transport.

6.Our company provides design layout drawings, designers with professional qualifications, according to your layout parameters, for you to exclusively design machine solutions, we can also design the machine according to the factory area you provide Land area, and labor demand.
